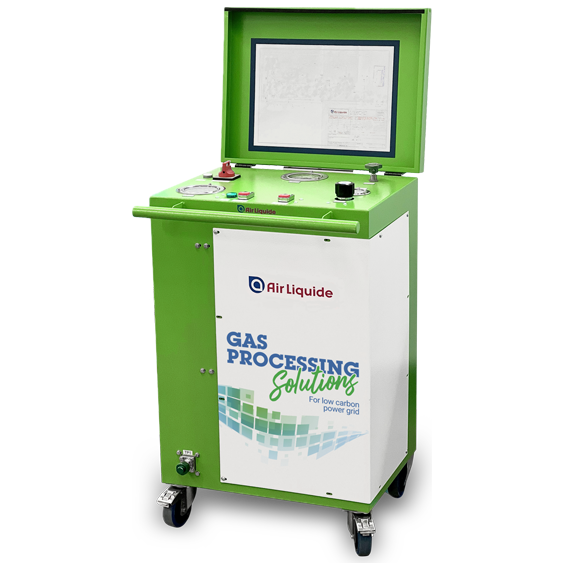

Gas-to-Gas mini module
Fully and easily transfill eco-friendly dielectric SF6-free gas mixtures. A compact gas handling cart for immediate filling and recovery.
Bring agility and efficiency to your gas handling with our compact filling and recovery module.
Designed specifically for top filling operations
This compact mobile gas handling module brings agility and efficiency to your gas handling operations, including filling and recovery, thanks to its integrated vacuum pump and compressor.
- Optimal gas capacity utilization: The compressor allows for the full exploitation of a Container for gas transfer.
- Agility and mobility: Its highly compact design makes it incredibly easy to maneuver.
- Versatile reliability: The unit is designed for all-weather use.
Enables critical high-voltage compartment management
- Filling: Fill high voltage compartments, Gas Insulated Substations (GIS), or Gas Insulated Lines (GIL). With its compressor, the module can fully empty a gas container down to ambient pressure.
- Recovery: Efficiently recover gas contained in a high voltage compartment down to 4 mbara using its vacuum pump.
Frequently Asked Questions (FAQ)
What are the physical specifications of the module?
The Gas-to-gas mini is highly compact, with dimensions of 0.55 m x 0.5 m x 1 m (L x W x H) and a weight lower than 100 kg. It is equipped with wheels for easy moving and operates manually, providing greater flexibility and control over your gas operations.
What are the pressure and flow rate capacities?
The equipment provides an average filling flow rate of 1 Nm3/h. The maximum filling pressure for GIS/GIL is 12 barg, while the maximum inlet pressure for the storage container is 25 barg. Filling and recovery are performed using a gaseous phase source.
What equipment is it compatible with?
It is ideally associated with the Container for gas transfer in 200 L, 500 L, and 1,000 L sizes, or other compatible containers.
Maximize performance with related services
To ensure the optimal operation and longevity of your Gas-to-gas mini, Air Liquide offers a comprehensive suite of related services. This includes dedicated technical assistance, preventive and curative maintenance, a reliable supply of spare parts, and specialized training programs.
Documentation
-
Gas to Gas mini brochureDownload the document PDF (671.07 KB)
