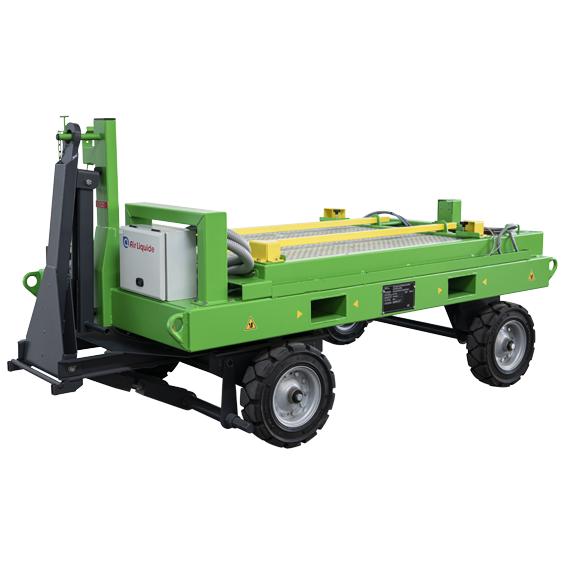

Cart for liquid tank

Process safely large gas volumes for high voltage equipment. Our cart enables large distribution of non-SF6 eco-friendly dielectric gas mixtures.

Consult the brochure

Safely manage high capacity gas volumes while reducing cylinder handling operations by a factor of 8.

Key benefits

Efficient large volume gas management

  • Air Liquide's cart for liquid tank is designed to convert the premixed liquid to a homogeneous non-SF6 gas mixture contained in large 500 L tanks.
  • Working with the liquid to gas mobile cart, it allows large distribution of non-SF6 eco-friendly dielectric gas mixtures.
  • The fully automated processes reduce operator time to a large volume of product.

Advanced induction heating technology

  • Air Liquide's proven induction heating process provides unmatched vaporization at relatively low temperatures.
  • Only induction heating uses the tank as the heater.
  • This provides watt densities with high efficiency and less losses which allow higher flow rate and improved productivity.

High voltage operations

  • The cart brings safety and efficiency to the filling and recovery of your large high voltage equipment with non-SF6 gas mixtures.
  • Automation adds consistency.
  • The large volume reduces the cylinder handling by a factor of 8, resulting in improved quality, efficiency and safety.

Frequently Asked Questions (FAQ)

What are the key technical characteristics of the cart?

The equipment allows a filling flow rate of 12 m3/h when used with a liquid to gas cart. Additionally, it can heat a 500 L tank (80 Nm3) in 3 hours at 20°C.

What are the dimensions and weight of the equipment?

The cart for liquid tank dimensions are 1.1 m x 1.3 m x 2 m (L x W x H). It is designed to be relatively lightweight, with a weight of <400 kg.

How is the equipment handled on site?

Equipment handling is highly versatile, featuring solid wheels, an axle with a pivoting drawbar, a towing hook, and a park break. It also includes pockets for a forklift and 4 lifting hooks

CE Certified Design & Related Services

The cart for liquid tank features a CE certification. Furthermore, the ambient temperature of service ranges from -20°C to 50°C, making it suitable for varying environments. To ensure optimal performance and support, Air Liquide offers comprehensive related services including technical assistance, preventive and curative maintenance, spare parts, and training.
